Description
- Communication method: NB-IoT,Wi-Fi
- Camera Equipped: No
- State of Assembly: Almost Ready
- Model Number: Smart Relay Switch Module
- Compatibility: All Compatible
- Brand Name: LLXLJY
- Origin: Mainland China
- Specification: US Plug
- Certification: None

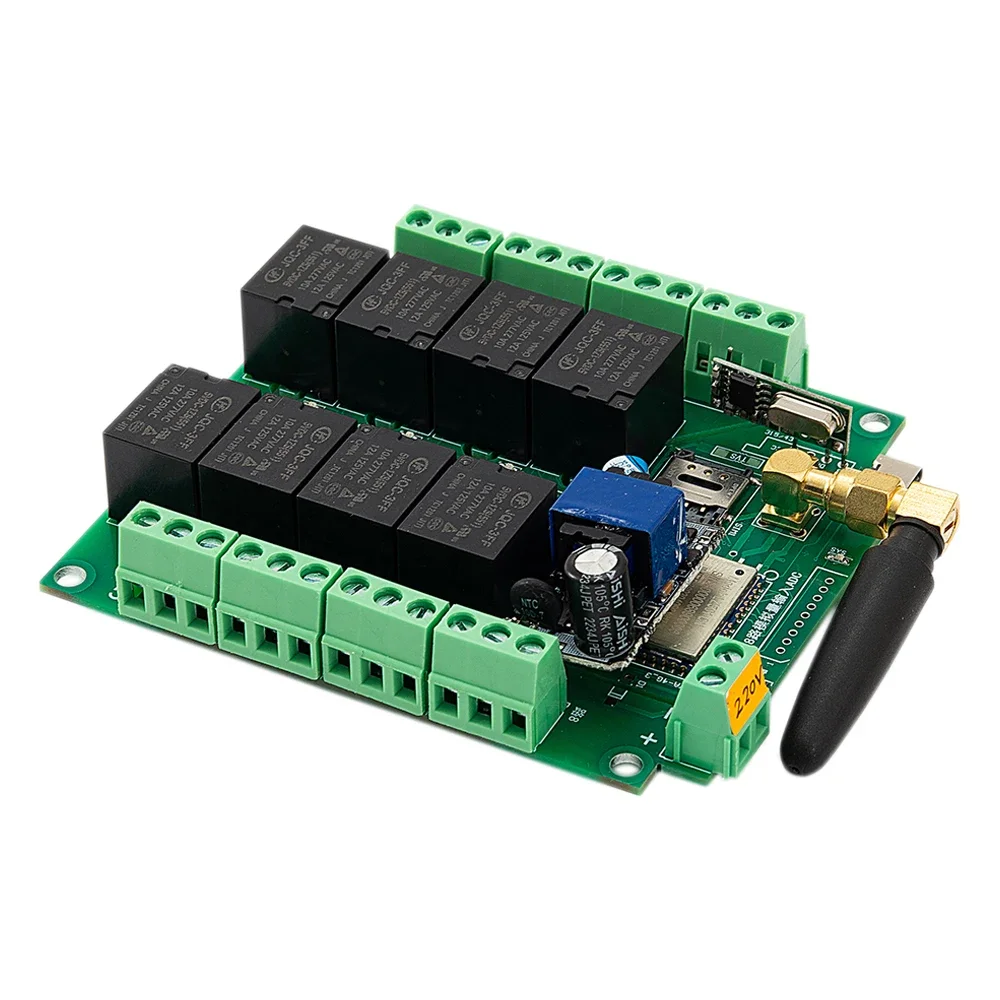

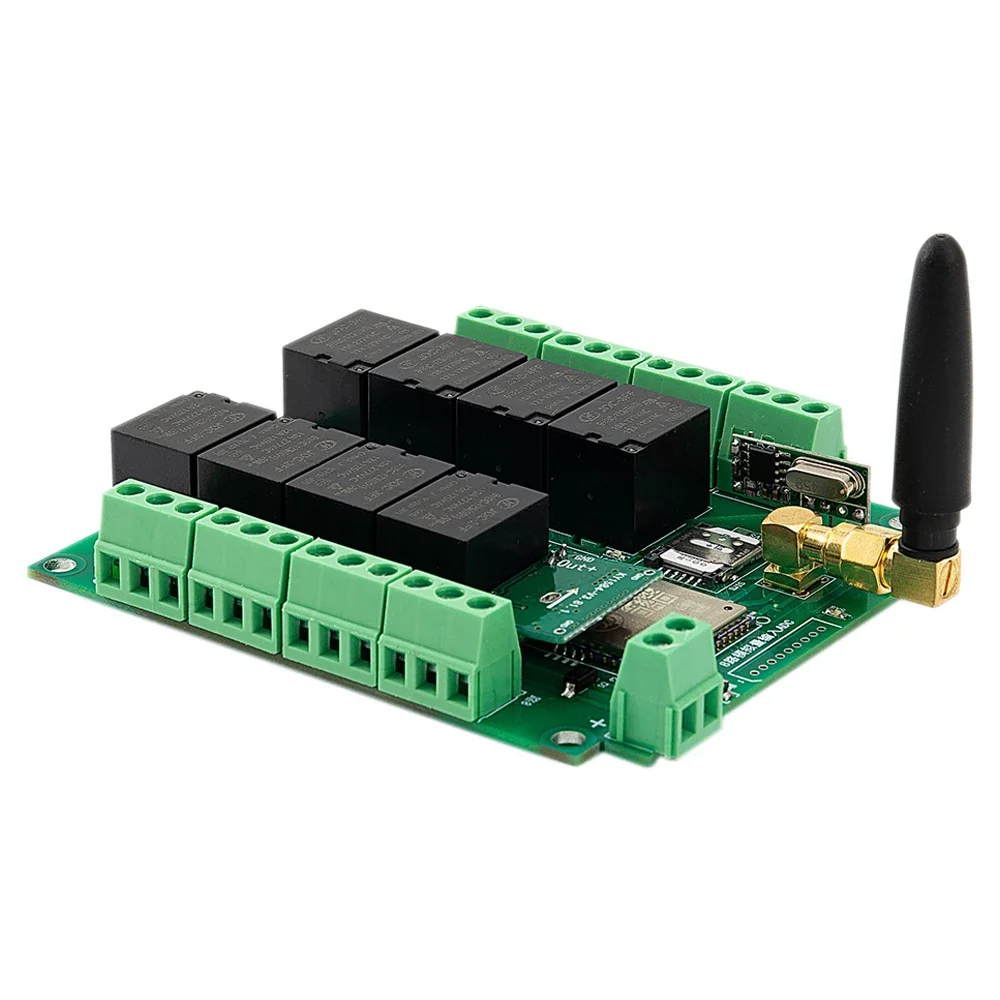

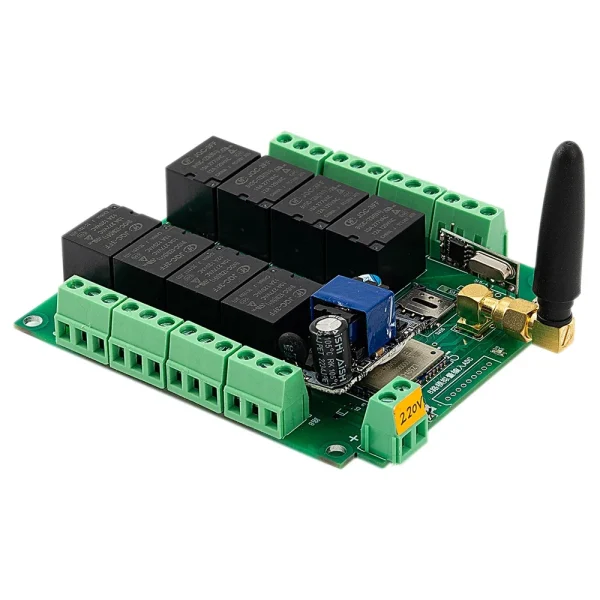

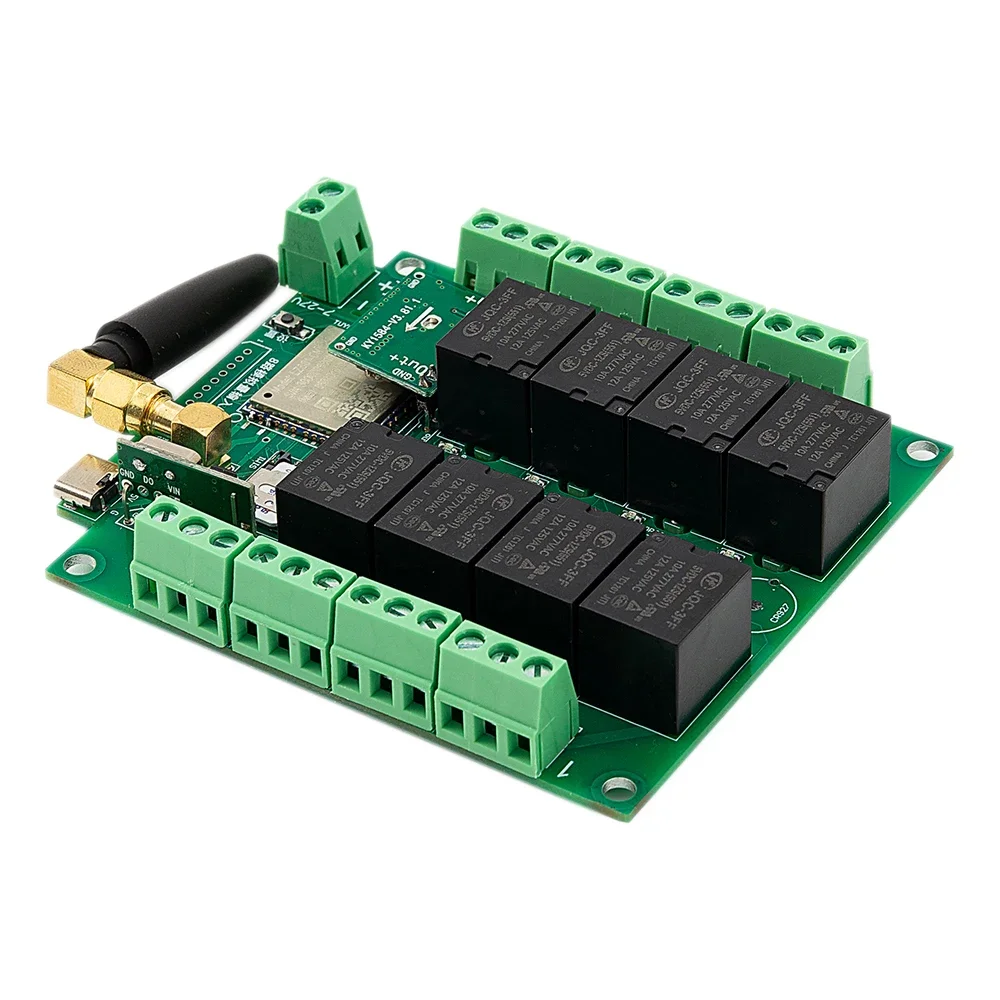

[4G remote] (basic function) NB-IOT IoT 4G remote relay module
This version has a built-in 4G network module, which requires a SIM card that can access the network, to get rid of the problem that the WIFI version needs a router to transfer to the network. As long as there is a 4G signal and the SIM card is in the network state, the module can be remotely controlled to achieve outdoor and remote Such as user equipment control requirements in places without WIFI.
Device network traffic consumption: 15MB/month
The product power supply is divided into DC7-27V power supply version and AV90-220V power supply version according to different models.
Download “Tuya Smart” from the software market, install and register, power off the module and restart it, open the APP, and click the + sign in the upper right corner to add devices.
【Remote control】Only supported if you have purchased a remote control) (If there is a flash that does not meet the steps during the operation, please turn off the power and try again),
Note: Power off and restart, wait for the indicator light to finish flashing before operating.
Action explanation: self-locking (press once to open, press again to close)
Action explanation: jog (click and turn on and off automatically after about 0.5 seconds),
Action explanation: Press the lock (press and hold it, release it and close it)
Action explanation: only open (this key can only be opened, cannot be closed)
Action explanation: only close (this key can only be closed, not open)
Action explanation: interlock (this function needs to be set on the APP)
Action explanation: Timing (this function needs to be set on the APP)
Action explanation: delay (this function needs to be set on the APP)
The circuit board setting button setting method supports remote control and 433mhz remote control as follows:
(Learning self-locking) Quickly press the “Setting” button 5 times, relay 1 flashes, (click the setting button to change the learning
relay number), at this time, long press a key on the remote control to learn a key, you can continue to press all the keys, after the operation, you need to power off and restart;
(Learn to move) Quickly press the “Setting” button 6 times, the relay 1 will flash, (click the first button to change the setting to learn
dimensional electric number). At this time, press and hold 1 key of the remote control to learn 1 key, you can continue to press all the keys, and you need to power off and restart after the operation;
(Learn to press the lock) Quickly press the “Setting” button 7 times, the relay 1 will flash internally, (click the Setting button to change the learning
relay number), at this time, long press a key on the remote control to learn a key, you can continue to press all the keys, after the operation, you need to power off and restart;
(Study is fully open) Quickly press the “Settings” button 8 times, and relays 1 and 2 will flash at the same time. At this time, the learning of one key of the long-control remote control is fully open and completed;
(Learning all off) Quickly press the “Setting” button 9 times, relays 1, 2, and 3 will flash at the same time, at this time, long-control the 1 key of the remote control to learn all off, and it is completed;
(Learning only open) Quickly press the “Setting” button 8 times, relay 1 and 2 flash at the same time, press the “Setting” button once, and relay 1 flashes (continue to click the setting button to change the relay number to be learned) At this time, long press 1 key learning of the remote control is completed;
(Learning only off) Quickly press the “Setting” button 9 times, and Weiwei Electric 1, 2, and 3 will flash at the same time. ), at this time long press 1 key on the remote control to complete the learning;
(Single key control multiple channels) For example: 1 button on the remote control controls relays 2, 3, 8 at the same time: quickly press the “Setting” button 5 times, relay 1 flashes, press the “Setting” button once, relay 2 flashes , quickly press the “Setting” button 3 times, relay 2 and 3 flash at the same time, quickly press the “Setting” button 8 times,
The 2, 3, and 8 of Wei Electric flash at the same time. At this time, press and hold the button 1 of the remote control until the relay light changes, then let go, turn off the power and turn it on again, and it is completed.
Interlock setting instructions: (requires Tuya APP setting)
●Input 2 on the top and 2 on the bottom, which means channel 1.2. Interlock
●Input 3 on the top and 3 on the bottom, which means channel 1.2.3 interlock
●Input 10 on the top and 10 on the bottom, which means interlocking channel 1.2.3.4.5.6.7.8.9.10
●Input 4 on the top and 2 on the bottom, which means channel 1.2. Interlock, 3.4. Interlock
●Input 8 at the top and 2 at the bottom, which means 1-2 interlock, 3-4 interlock, 5-6 interlock, 7-8 interlock
●Input 10 at the top and 5 at the bottom, which means channel 1.2.3.4.5 interlock, 6.7.8.9.10. interlock
●Enter 0 above and 0 below, indicating no interlock
【Jog settings】
Tuya APP setting is required, the jog time range is 1-999999 milliseconds.
Jog setting instructions:
●Input 1 for the channel number, the current jog time of channel 1 will be displayed below, and the jog time can be changed such as 500 milliseconds.
●Channel number input 2, the current jog time of channel 2 will be displayed below, and the jog time can be changed such as 500 milliseconds.
●Jogging time input 0 means this channel does not jog, set other channels by analogy.
485 bus (only with 485 function)
[Restore factory settings] Press and hold “Settings” for 10 seconds, let go when the indicator light flashes quickly, and it’s done.

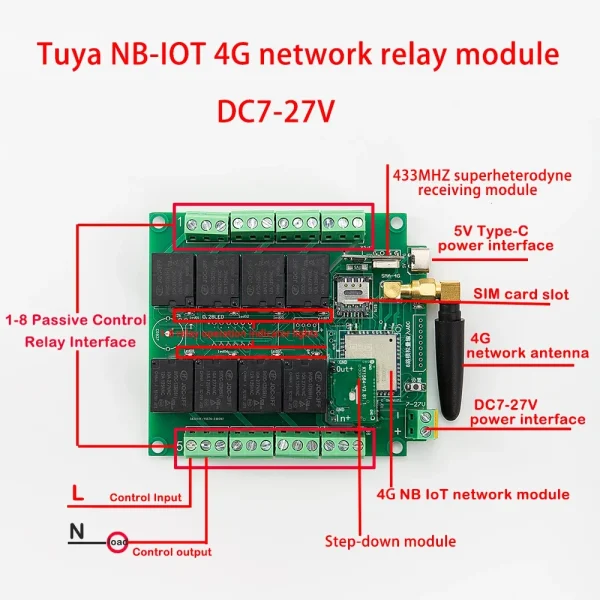

DC 7-27V:

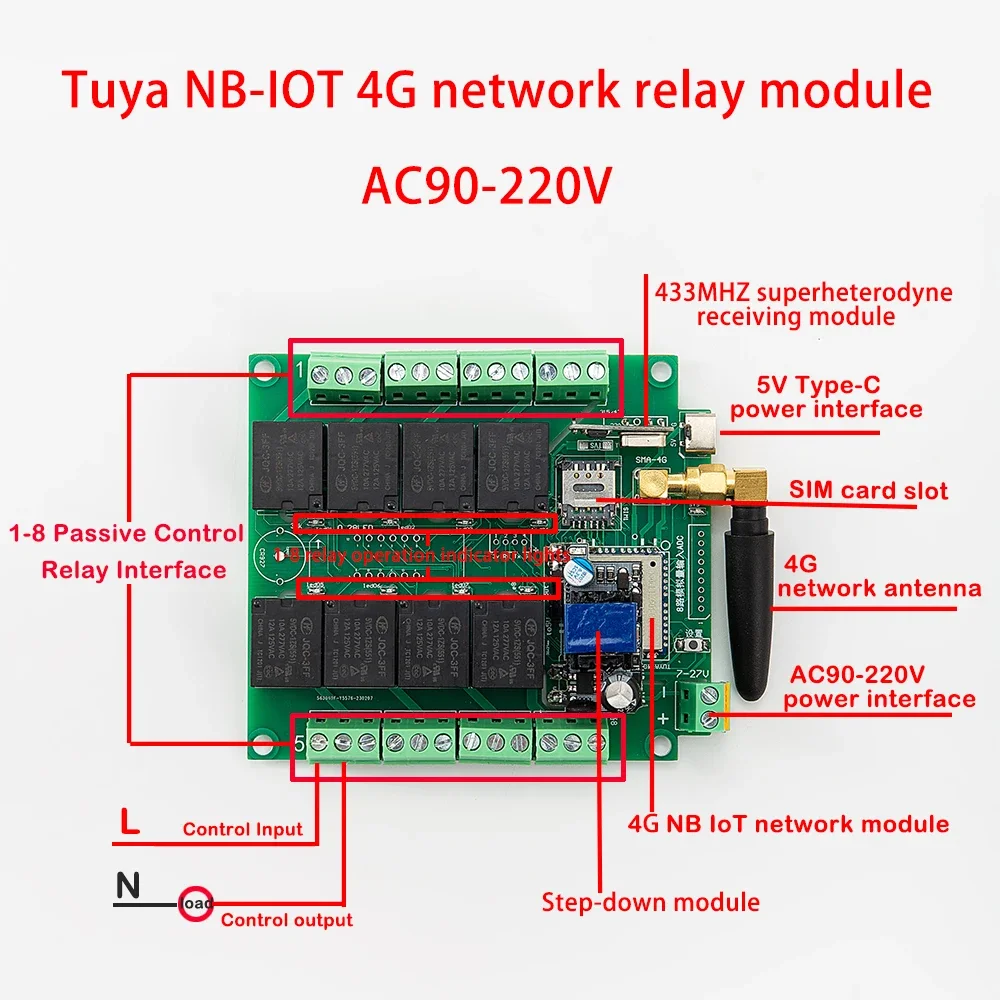

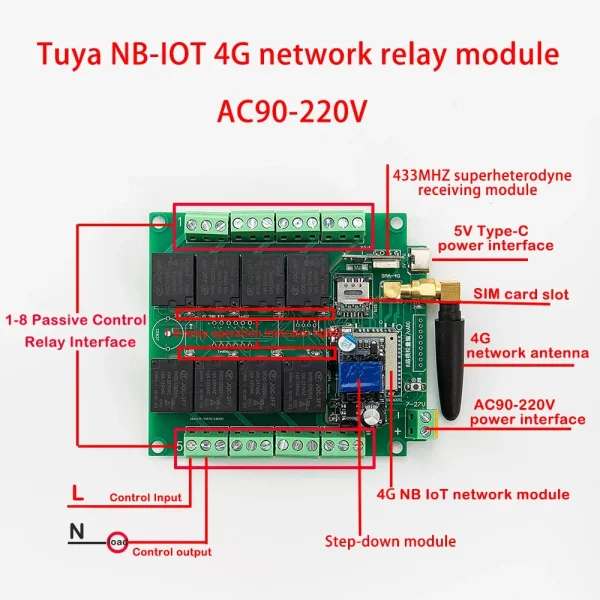

AC 90-220V:
